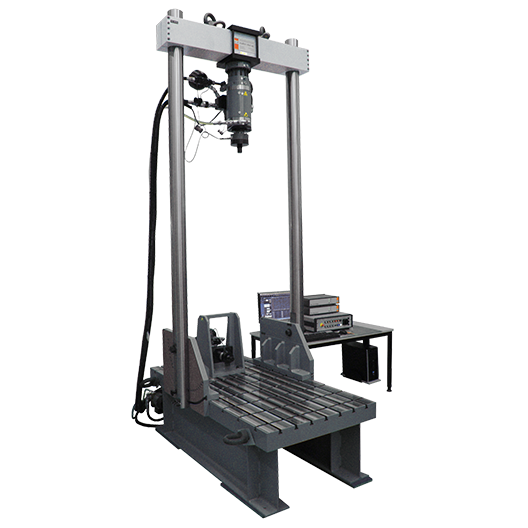

Swivelling Universal Load Frame Series BT

Suitable for static and dynamic testing of components and structures.

The BT Series of Swivelling Universal Load Frames provides economical testing solutions to component suppliers or testing labs to validate the performance or durability of a wide range of components and structures.

The units provides custom sized T-Slot platen to clamp specimens, components, manufactured assemblies or side load fixtures for horizontal force transmission or mounting of rotary actuators.

To archive a complete freedom, the vertical actuator(s) can be positioned / moved along the upper crosshead and the crosshead with columns is step-less free tiltable from vertical to horizontal (–40° to +90 degree). The column can be fixed on different position onto the T-slot platen to extend mounting area of the T-slot platen.

Product Info EN

Swivelling Universal Load Frame Series BT

Swivelling Universal Load Frame Series BT
