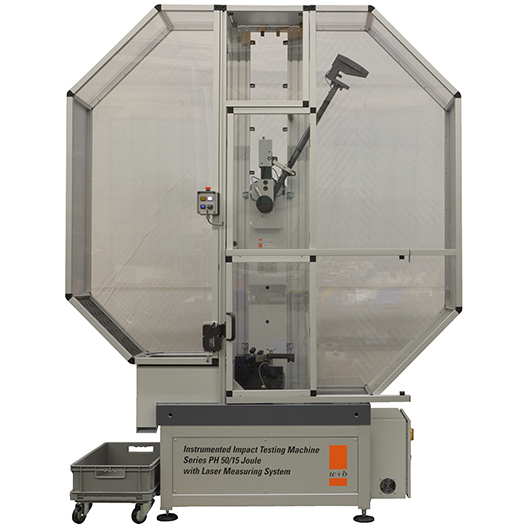

PH Version CHV Expandable Pedelum Impact Tester up to 75 Joule

The Impact Testers confirm to international standards as ISO 148-1 & ASTM E23 and are suitable for impact bending tests to CHARPY and with accessories to IZOD, Impact Tensile & Brugger tests as well as for subsized & DVMK specimens.

The unit can be expanded for instrumented testing according to ISO 14556 & ASTM E2298 as well as with laser opto-electrinic-measuring-system for deflection (bending) and crack opening measurement for the experimental determination of the intensity of stress, KID/KIC-factor can also be attached.

PH Version CHV Expandable Pedelum Impact Tester up to 75 Joule

PH Version CHV Expandable Pedelum Impact Tester up to 75 Joule
