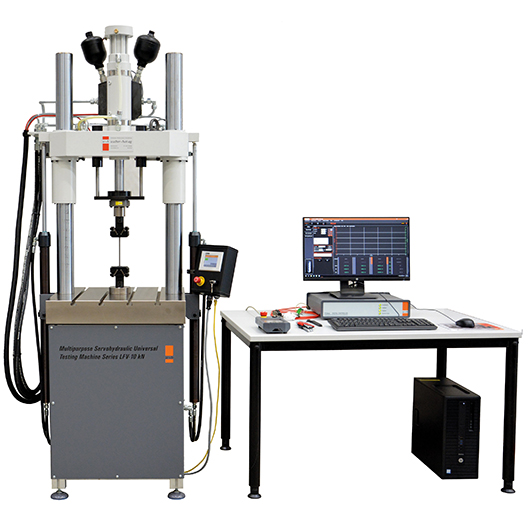

LFV Compact Multipurpose Dynamic and Fatigue Systems up to 50 kN

The LFV Compact Series represents ergonomically and space saving test systems ideal for characterizing the static and dynamic properties of materials and components at force capacities up to 50 kN.
The hydraulic power supply of the machine is integrated in the base of the testing machine making this series extremely compact, space saving and easy to install
The fatigue rated actuator is conveniently mounted in the upper crosshead. The system incorporates an extremely versatile lower integral T-slot platen. The corrosion resistant T-slot platen is well suited to mount grips & fixtures, specimens and any kind of engineering components or
finished goods.
Typical applications includes monotonic (static) tension, compression, bend, shear and other tests, durability and fatigue tests including fatigue crack growth testing, testing of components and manufacturing assemblies for the biomedical, automotive, aircraft, electronic, plastic injection moulding and other industries.

Key Features

  • Versatile design for testing components and a variety of materials
  • Compact and space saving due to on integrated hydraulic
  • power pack
  • Latest digital control electronics with closed loop control and data acquisition rate, and with self-identification transducer coding
  • Rigid machine frame of high stiffness, provides superior axial and lateral stiffness and guarantees robust, durable and long-term operation
  • Test space adjustment available from mechanical lift to automatic system
  • Hydraulic passive clamping (Version HH) system assures that the upper crosshead is clamped to the column without any hydraulic pressure applied.
  • Double acting, double ended, and equal area Servo Actuator with Hydrostatic 4-Pocket Bearings for the best friction free static and dynamic performance with nearly service-free operation.
  • Highly accurate load cell and digital piston stroke transducer
  • High performance Servovalve(s)
