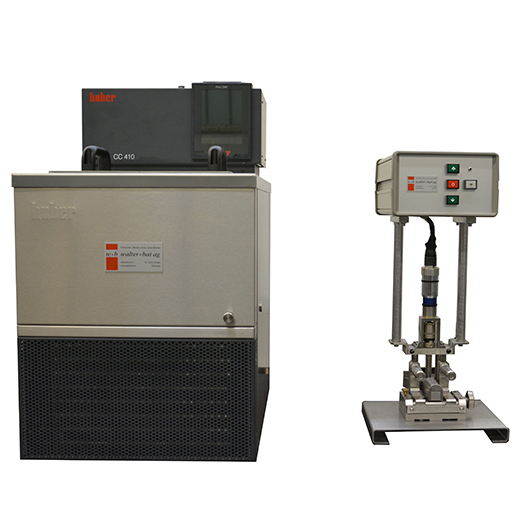

Cold Bending Test Device TD-KB for the Determination of flexibility of roofingmaterials at low temperatures

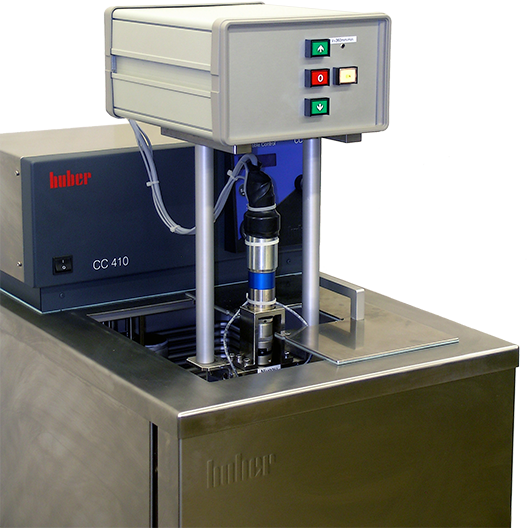

The TD-KB series is designed for the determination of flexibility of bitumen sheets at low temperatures according to
EN 1109 & SIA 281.

These easy-to-use units allows to perform tests in the temperature range from -45°C to +200°C and offers the pre-temper of up to 6
specimens at the same time.
The lower bending distance is adjustable and all parts that submerge into the cooling liquid are made from Cr-Ni Steel.

Test Description
The test can be carried out on the upper or lower face of the sheet either at a predetermined tem-perature or successively at different temperature steps to determine the cold bending temperature which represents a limiting temperature. Therefore, the test can be used to confirm a minimum cold bending temperature for a product or to determine the specific cold bending temperature for the product e.g. to determine the change of these properties as a result of artificial ageing. In the case of sheets with the same bituminous compound on both sides and where the reinforcement is placed in the cross section visually closer to the upper surface, the test is performed on the bottom face only. If the upper surface is covered with a non-woven (e.g. tissue, fleece etc.) or metal facing, the test is performed on the bottom side only. If the sheet on the upper surface is covered with permanent light surface protection and where the reinforcement is placed in the cross section visually closer to the upper surface, the test is performed on the bottom side only.
