Wood and Timber

Wood is a renewable and also versatile material increasingly popular used as construction material as well as resource for polymers and monomers..

We are offering solutions for structural testing as well as for testing of the mechanical properties of wood and timer.
We are offering an extensive range of wood testing grips & fixtures for tensile, bend/flex, shear or compression testing compatible with our electromechanical and servohydraulic testing machines.

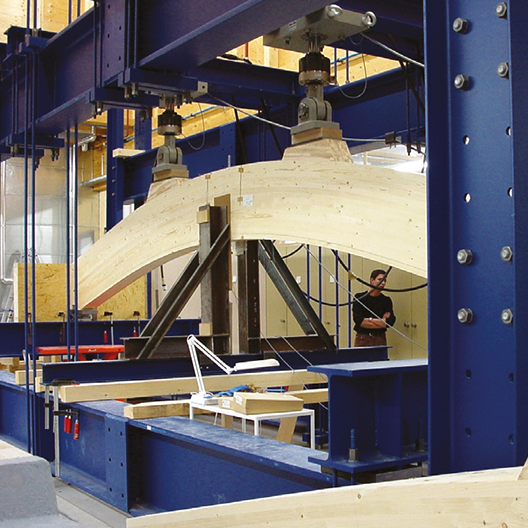

For construction, structure, architectural and seismic testing you can benefit from our experience and extensive product range and solutions.

Electromechanical Structural Panel Flexure Testing Machine Series EMBP 5500 Nm

This testing machine is used to determine the flexural properties of structural panels tested both parallel and perpendicular
to the long dimension of the panel.

Universal Flexural Testing Machines with Extra Wide Bending Table Series B - S 50 - 200 kN

The B-S universal flexural (bending) testing machines are well suited for testing of long specimens as concrete beam, pile, prism, railway sleepers as well as wooden / timber specimens and structures.
With appropriate accessories the machine can also perform compression, tensile, shear and other tests on a variety of materials.
