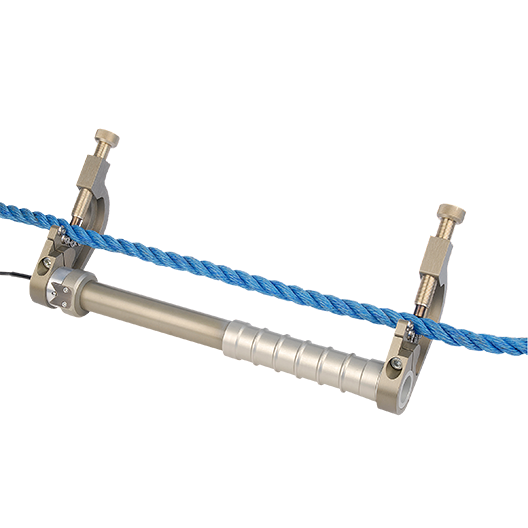

Long Gauge Length Axial Extensometer Series MFI
The MFI series extensometers have been specially designed for applications where long gauge lengths are required. Available are units with measuring range 20 mm, 40 mm or 100 mm and gauge lengths up to 1000 mm. Typical applications includes testing of wire strands, wires, cables, chains, belts and others.
One of the key advantages, beside its long gauge lengths, of the MFI series is its sturdy construction combined with high accuracy. The units are well suited for vertical as well as horizontal operation.There are three (3) different units available with 20 mm, 40 mm and 100 mm measuring range.
Features
-
Long gauge lengths available
-
High accurate system
-
Flexible adjustable gauge lengths with extension tubes
-
Quick exchange between gauge lengths through easy to change extension tubes
-
Class 0.5 according to ISO 9513, Model MFI 40 and MFI 100 Class 1
-
Robust yet light design
-
Adjustable clamping force
