Introduction

Walter+Bai offers fully automated Charpy impact testing systems for instrumented and non-instrumented testing of metallic standard and sub-size specimens, with or without integrated temperature conditioning.

Our systems combine high-performance pendulum impact testers with intelligent robotic automation to provide reliable, highly reproducible impact testing according to international standards including ISO 148, ASTM E23, ISO 14556 and ASTM E2298. Depending on the application, impact energies from a few Joules up to 900 Joules are available.

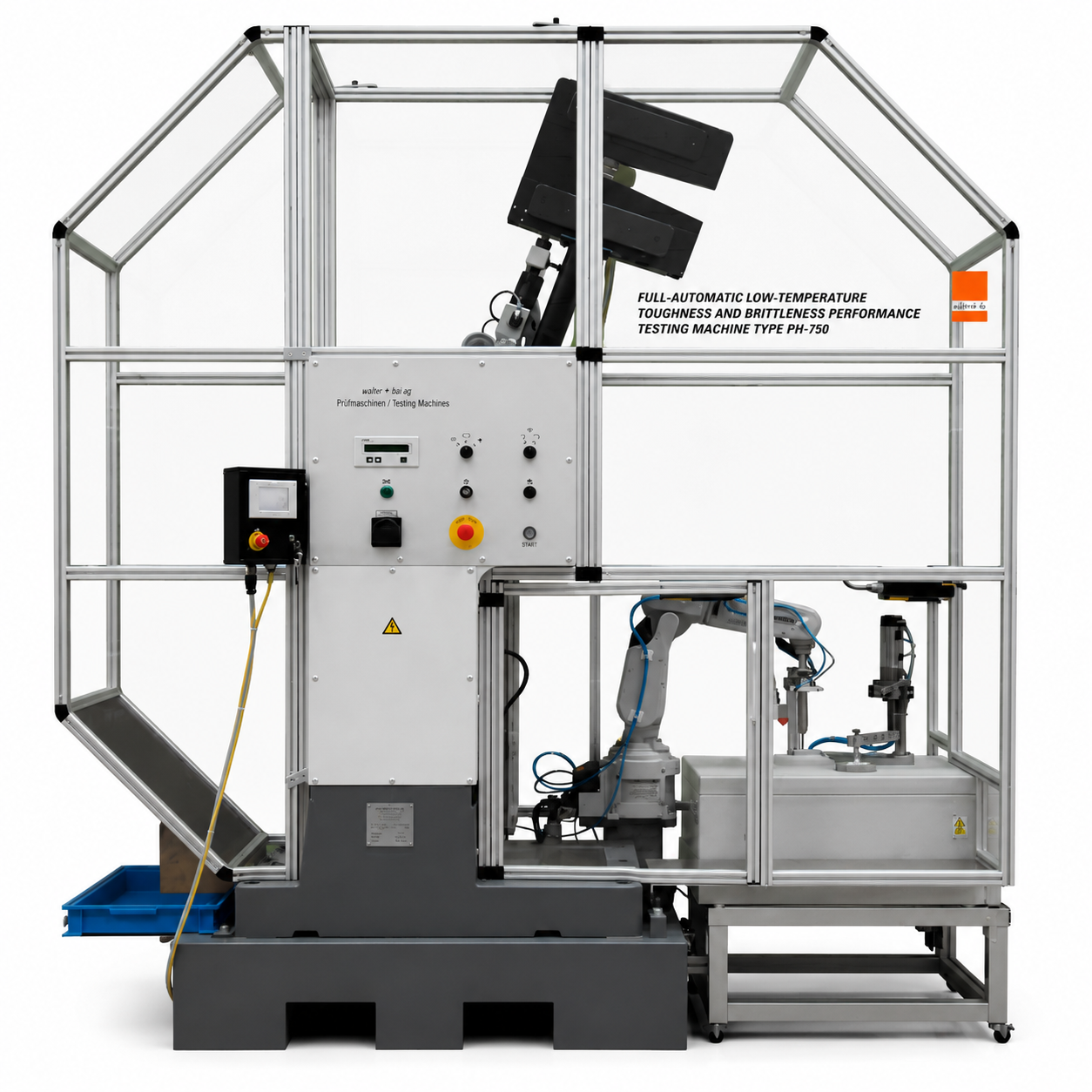

Fully Automated Testing

Walter+Bai automated systems are designed for high-throughput laboratories and production environments requiring maximum efficiency and repeatability. The complete testing process can be performed automatically, including:

• Automatic specimen identification
• Barcode reading
• Robotic specimen handling
• Automatic temperature conditioning
• Automatic specimen positioning
• Automatic impact testing
• Automatic data acquisition
• Automatic transfer of results to customer databases or LIMS

Temperature Conditioning

Walter+Bai offers complete temperature conditioning solutions for ambient, low-temperature and high-temperature impact testing.

Available systems include:

• Ambient temperature testing
• Low-temperature testing down to −180 °C using LN₂ systems
• Cryogenic testing down to 20 K (−250 °C) using specialized cryogenic solutions
• High-temperature testing up to +900 °C or higher using customized furnace systems

Automatic specimen transfer ensures compliance with international standards requiring impact testing within only a few seconds after removing the specimen from the conditioning chamber.

Instrumented Impact Testing

For advanced material characterization, Walter+Bai provides fully automated instrumented pendulum impact testing systems equipped with:

• Strain-gauged instrumented strikers
• Ultra-high-speed data acquisition
• Advanced evaluation software

The systems enable detailed analysis of:

• Force–time curves
• Force–displacement curves
• Energy curves
• Crack initiation
• Crack propagation
• Dynamic fracture behaviour

System Advantages

• Fully automatic operation
• High testing throughput
• Excellent repeatability
• Maximum operator safety
• Modular system architecture
• Customized automation concepts
• Seamless LIMS integration
• Long-term reliability
• Swiss engineering by Walter+Bai

Applications

Walter+Bai automated Charpy impact testing systems are suitable for:

• Steel producers
• Automotive industry
• Aerospace
• Research laboratories
• Universities
• Quality control laboratories
• Fracture mechanics investigations
• High-volume production testing

Customized Solutions

With decades of experience in materials testing technology, Walter+Bai develops customized automated impact testing solutions ranging from compact laboratory systems to fully integrated robotic testing cells. Every system is individually configured to meet the customer's testing standards, specimen types, throughput requirements and laboratory environment.
