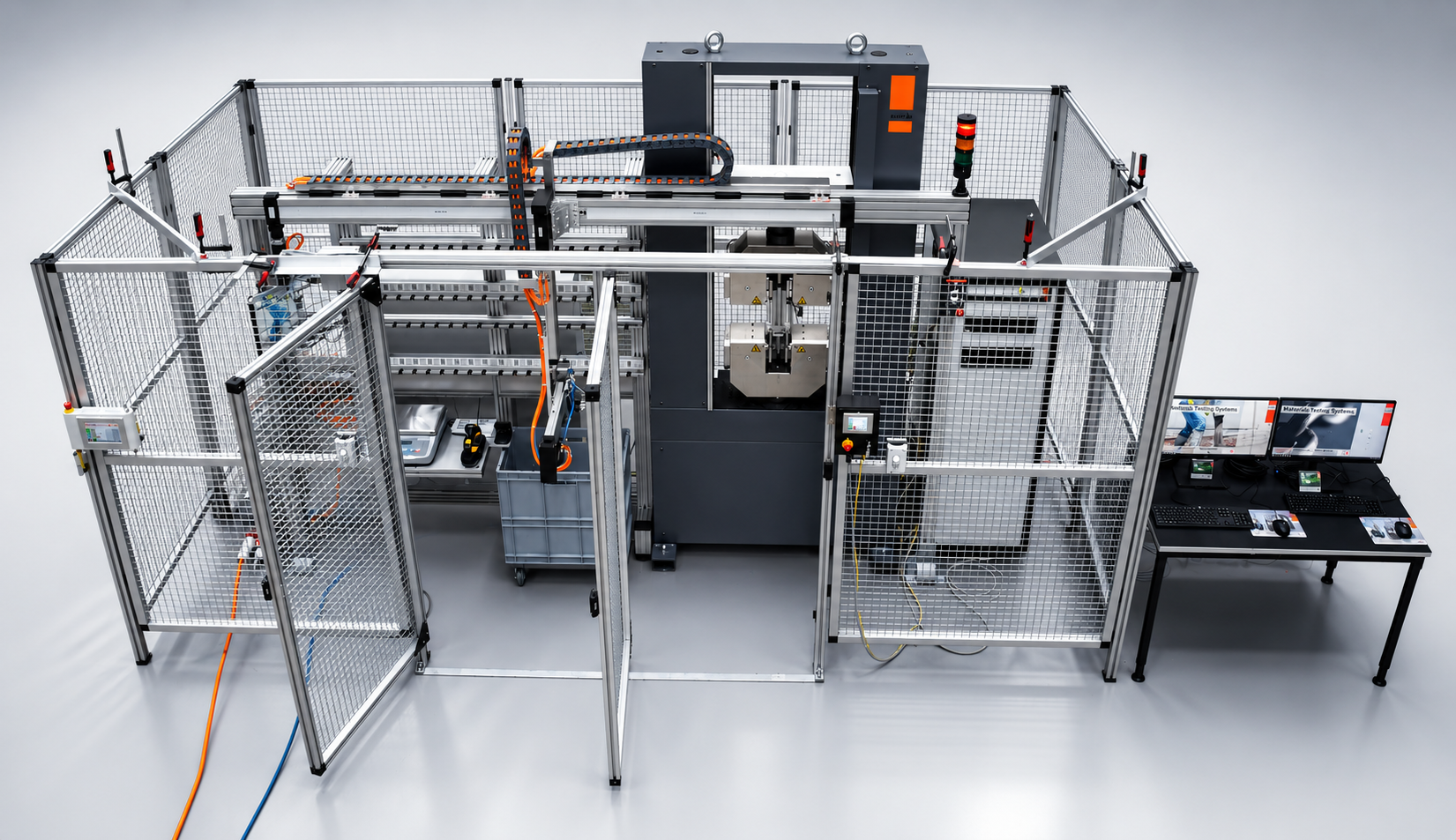

Automated Rebar Testing System
Different bar diameters can be processed automatically without manual intervention one the specimens are loaded. Intelligent handling systems transport the specimens from the storage magazine to the testing machine, where they are automatically aligned, gripped and tested. After completion of the test, the fractured specimen is removed and sorted, allowing continuous unattended operation.
The system is based on Walter+Bai's high-precision electromechanical or servo-hydraulic testing machines and is fully integrated with the DION7 testing software. Automatic specimen identification by barcode or QR code, seamless data acquisition and direct transfer of test results to laboratory information systems ensure complete traceability and efficient laboratory management.
The modular design allows the system to be configured according to customer requirements, including different specimen magazines, handling systems, automatic diameter or lenght measurement, weight measurement, extensometers, marking systems and customized reporting solutions.
Key Features
- Fully automated tensile testing of reinforcing steel bars
- Automatic specimen loading, positioning, gripping and unloading
- High throughput for continuous laboratory operation
- Automatic specimen identification by barcode or QR code
- Compatible with different bar diameters and specimen lengths
- Excellent repeatability and measurement accuracy
- Reduced operator influence and improved laboratory safety
- Integration with DION7 software and Laboratory Information Management Systems (LIMS)
- Modular design for customer-specific configurations
- Compliance with international testing standards
