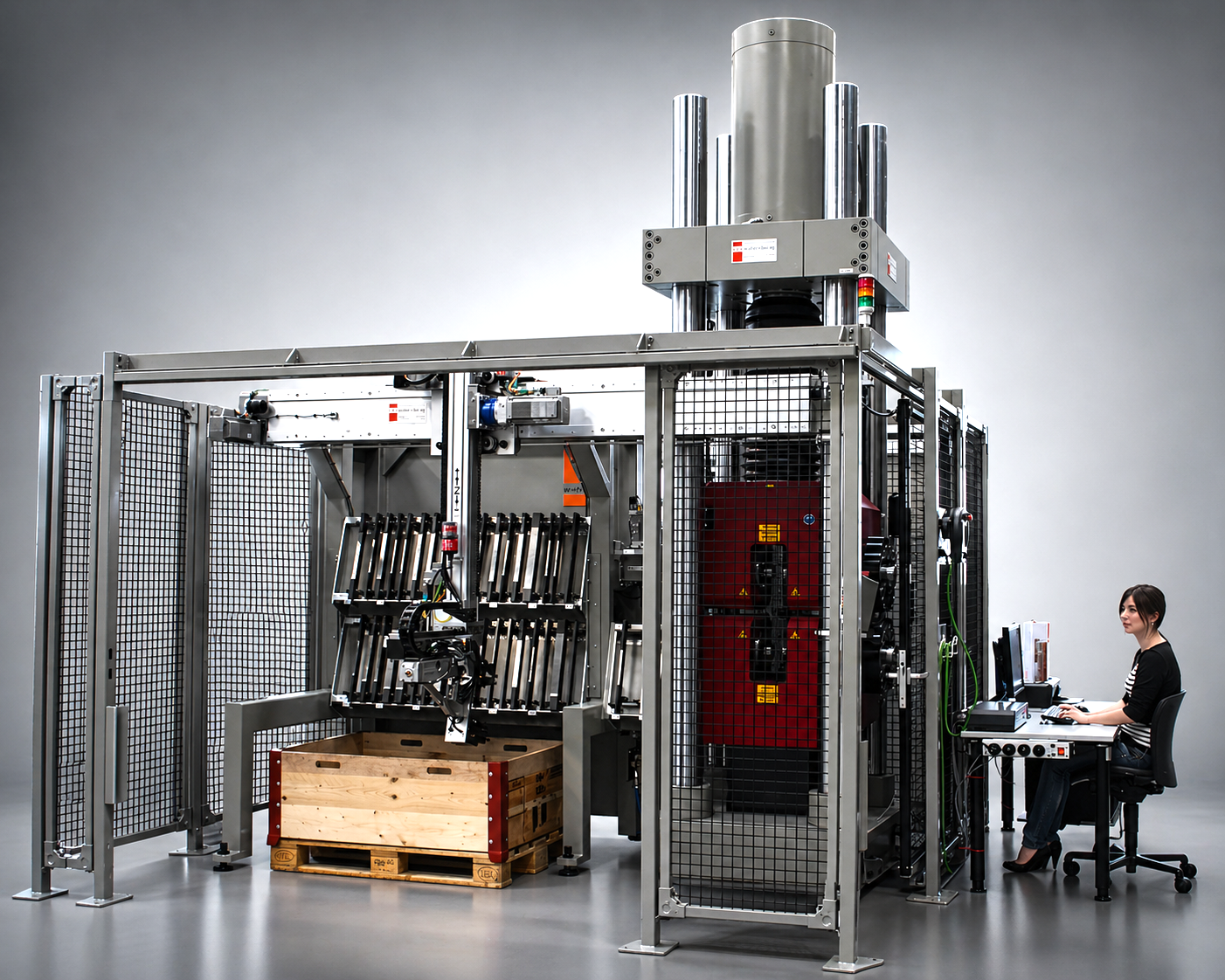

The Walter+Bai Automated Sheet and Plate Testing System with Portal Loader is designed for the fully automated tensile testing of metallic sheet and plate specimens. The system combines high-speed specimen handling with precision testing, providing maximum productivity, excellent repeatability and reliable test results for quality control laboratories, production facilities and research institutes.

The portal loader automatically transfers specimens from the storage magazine to the testing machine, performs specimen identification, optional cross-section measurement, accurate positioning and automatic gripping. After completion of the tensile test, the fractured specimen is automatically removed and transferred to a collection container before the next specimen is processed.

Designed for continuous high-throughput operation, the modular system can be configured for a wide range of specimen geometries, specimen sizes and testing capacities. Combined with Walter+Bai's high-precision testing machines and DION7 software, the system delivers maximum efficiency while minimizing operator intervention.



Key Features



• High-speed portal loader for automatic specimen handling
• Automatic loading and unloading of sheet and plate specimens
• Automatic specimen identification (Barcode / QR Code)
• Automatic width and thickness (cross-section) measurement
• Automatic specimen positioning and centering
• Automatic gripping and tensile testing
• Optical or contact extensometer
• Optional automatic r-value and n-value determination
• Automatic disposal of fractured specimens
• Continuous unattended operation
• Modular system design
• Integration with DION7 software and Laboratory Information Management Systems (LIMS)
